TRUMPF CNC PUNCHING MACHINES

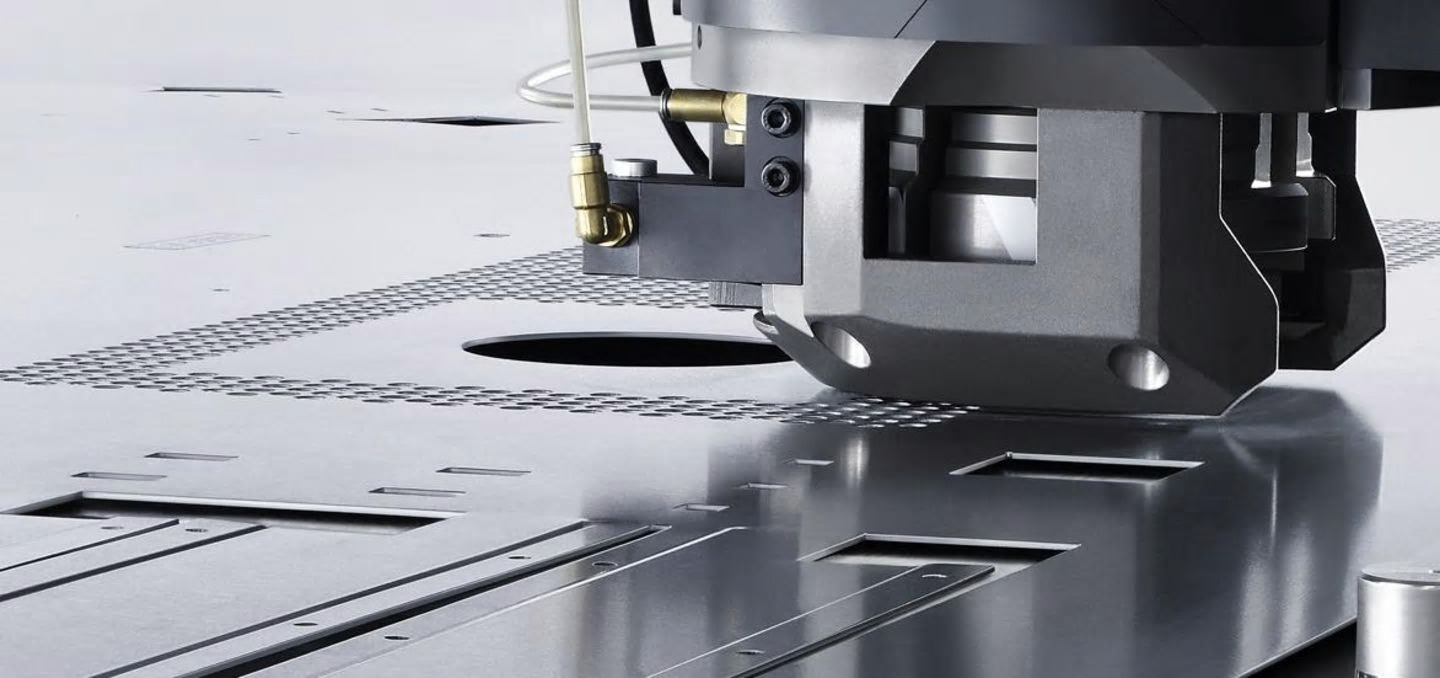

Trumpf punching

TRUMPF CNC punching machines are known in the industry for the highest green light time of all CNC punching machines. Standout features of the TRUMPF punching machine include:

  • All stations are 3 inch capacity
  • All stations rotate 360 degrees
  • Any station can accept a multi-tool
  • CNC controlled stripper
  • Adjustable stroke length
  • Rigid head design allows punching of .125 hole in .250 material
  • Die clearances to .001
  • 500,000 to 1,000,000 hits between regrinds
  • Tools have up to .250 of regrind length
  • Tools are set up off line
  • Tools aligned off line to prevent tool damage
TRUMPF TruPunch 1000 (S19)

The TruPunch 1000 (S19) can be upgraded to a punch laser machine even after purchasing as a stand alone machine. This is the machine that grows with you and your business. Fast and cost-effective punching, TRUMPF has developed a machine that helps minimize your risk. Think Big, Start Small.<

TRUMPF TruPunch 3000

Saves material! The TruPunch 3000 provides the highlest level of convenience. This machine has all the standard features of all teh TRUMPF machines but with a skeleton-free and gentle processing. High quality with minimal scratching.

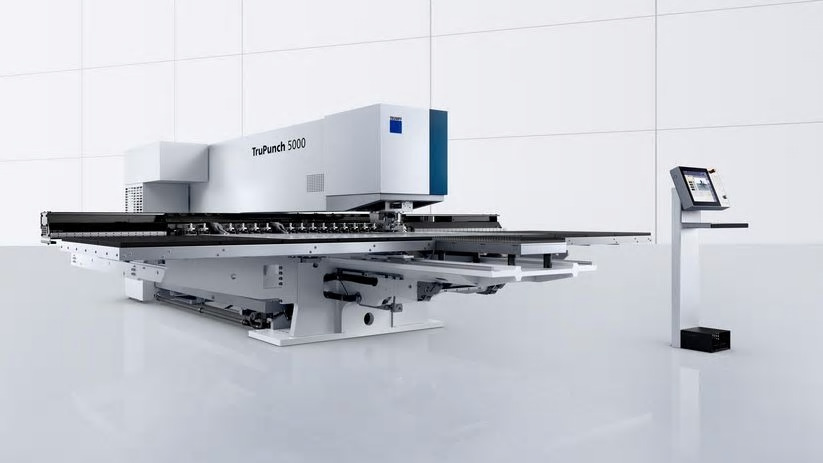

TRUMPF TruPunch 5000

Truly the fastest punching machine. The TruPunch 5000 is our flagship machine capable of high-speed nibbling, forming, shearing, bending. This machine will improve your production. This machine can be equipped with an adaptive die base which will allow for virtually scratch-free processing since the die base retracts out of the way between each stroke and/or sheet movement. The TruPunch 5000 can be coupled with multiple levels of automation.

  • 100" x 50" or 120" x 65" work area
  • 1200 spm / 2800 beading
  • Various levels of automation available

Ore Fab Machinery is proud to distribute TRUMPF's complete line of CNC punching machines throughout Missouri, Illinois, Kansas, Iowa, Arkansas, Oklahoma, Washington and Oregon.
